貨號:
ZB15KQE訂購 (最小量):
1付款:
EX-WORK市場價:
759原產地:
USA顏色:
White發(fā)貨港口:
Guangzhou發(fā)貨周期：
15 to 20 daysZB15KQE Copeland ZB Compressor Cold Room
Product description:
This BUW-A series products with Emerson scroll compressor,applicable to cold display cabi-nets, cold storage rooms, ice producers etc. The applicable temperature ranges are: -5'C~ 10"C.-l0'C~ -18C-18'C~-23"C. They can be widely used in hotels, restaurants, medicines, agricultur-al, chemicals industries all other place where cold storage is needed.
1.Products adopt vertical box-type structure,compact structure design, excellent appear-ance.
2.The cover of the case adopts hinge structure,which is easy to maintain and operate.

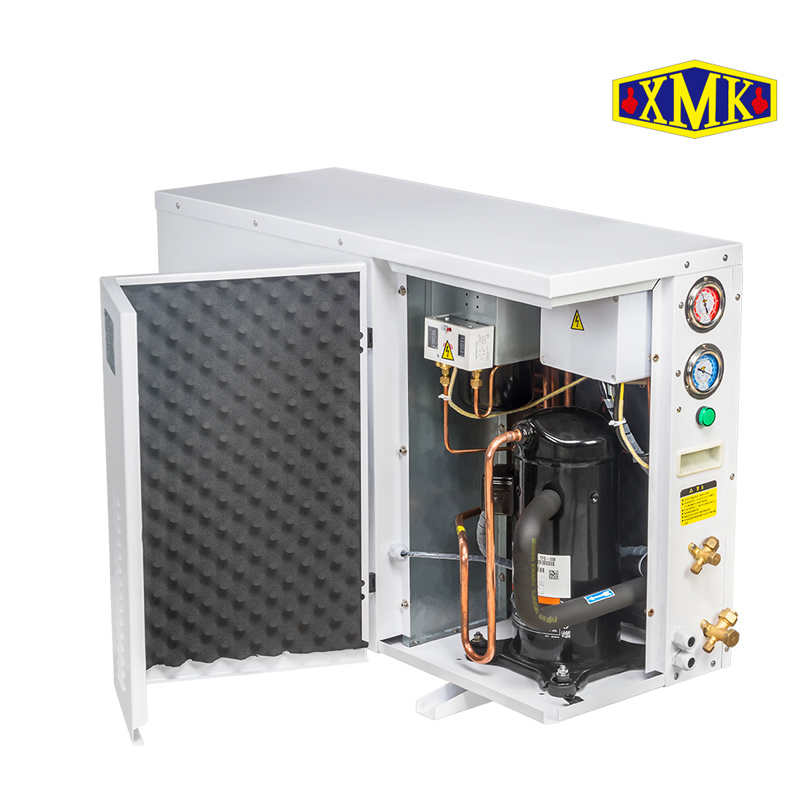

3.Compressor uses Emerson ZB series scrollcompressor and ZSI series scroll compressorwith DTC spray to meet the application ofmedium temperature and low temperaturerespectively.
4.Adopt L-type condenser, it has large windwardside, small wind resistance and good heat
transfer effect.
5.Adopt 6-pole external rotor motor with lowspeed and low noise.
6.It can meet the requirements of R22, R404A,R507A, R448A, R449A and other refrigerants.
Copeland ZB15KQE Condensing Unit Catalogue:
| Power Supply | 380V 50Hz 3phase |
| Apply Temp. | -15 to -5 degree |
| Compressor Model | ZB15KQE |
| Compressor Max.I(A) | 6 |
| Fan Voltage (V) | 380V 50Hz 3phase |
| Fan Current (A) | 0.5 |
| Rev.(r/min) | 910 |
| Suction Line (mm) | 19 |
| Liquid Line （mm） | 9.5 |
| Size length (mm) | 1040 |
| Size Width (mm) | 570 |
| Size Height (mm) | 700 |
